Muscle Wall FM Approval

2-Foot, 3-Foot, & 4-Foot Flood Barriers

We are proud to announce that Muscle Wall was recently awarded FM Approval, as well as passed all testing by the United States Army Corps of Engineers for 2-foot, 3-foot, and 4-foot Muscle Wall.

Muscle Wall is the only product on the market to receive FM Approval for a flood control barrier at 4 feet high.
Get Report Certificate of Compliance

FM Approvals Background

FM Approvals is an international leader in third-party testing and certification services. They test property loss prevention products and services—for use in commercial and industrial facilities—to verify they meet rigorous loss prevention standards of quality, technical integrity and performance. They do so by employing a worldwide certification process backed by scientific research, testing, and over a century of experience.

The FM APPROVED mark is recognized and respected worldwide. This certification instills confidence and commands respect in the marketplace.

Testing Location

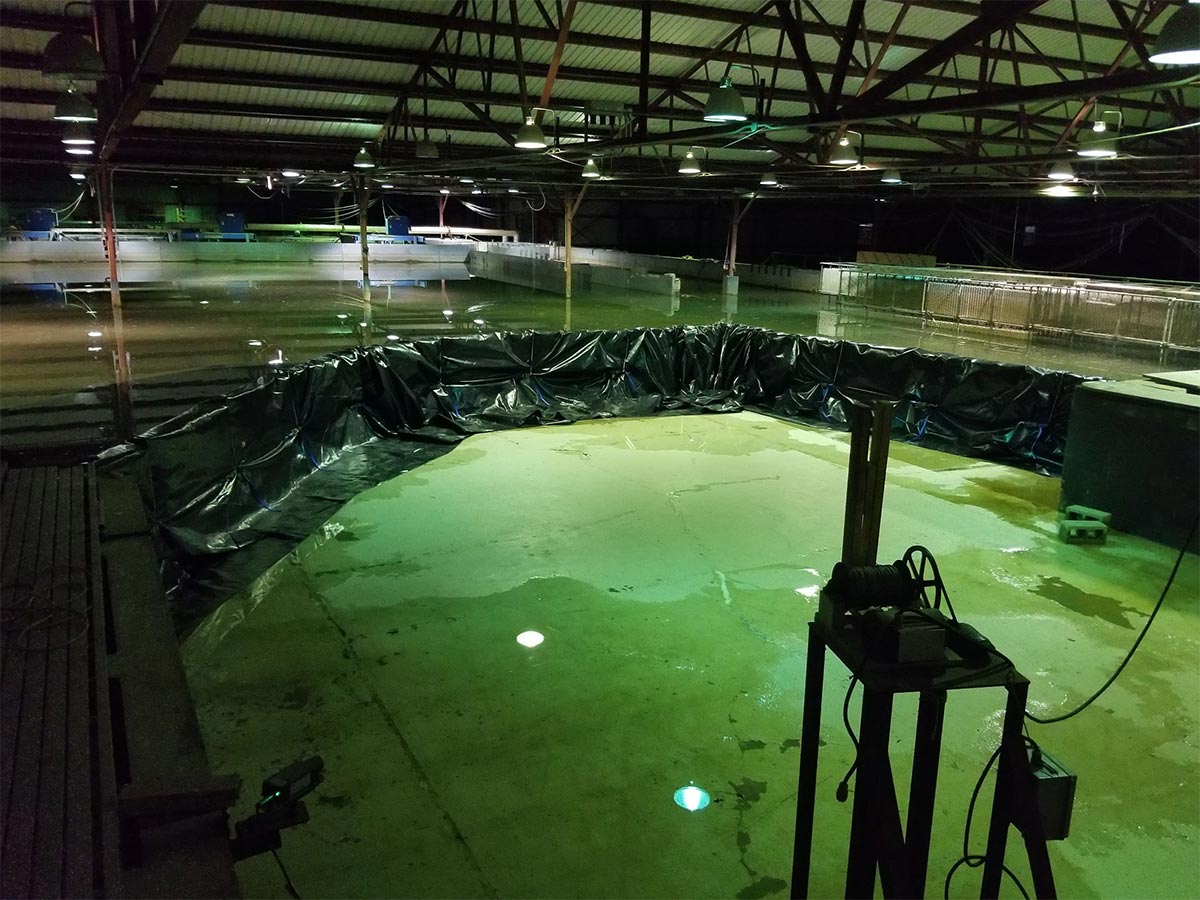

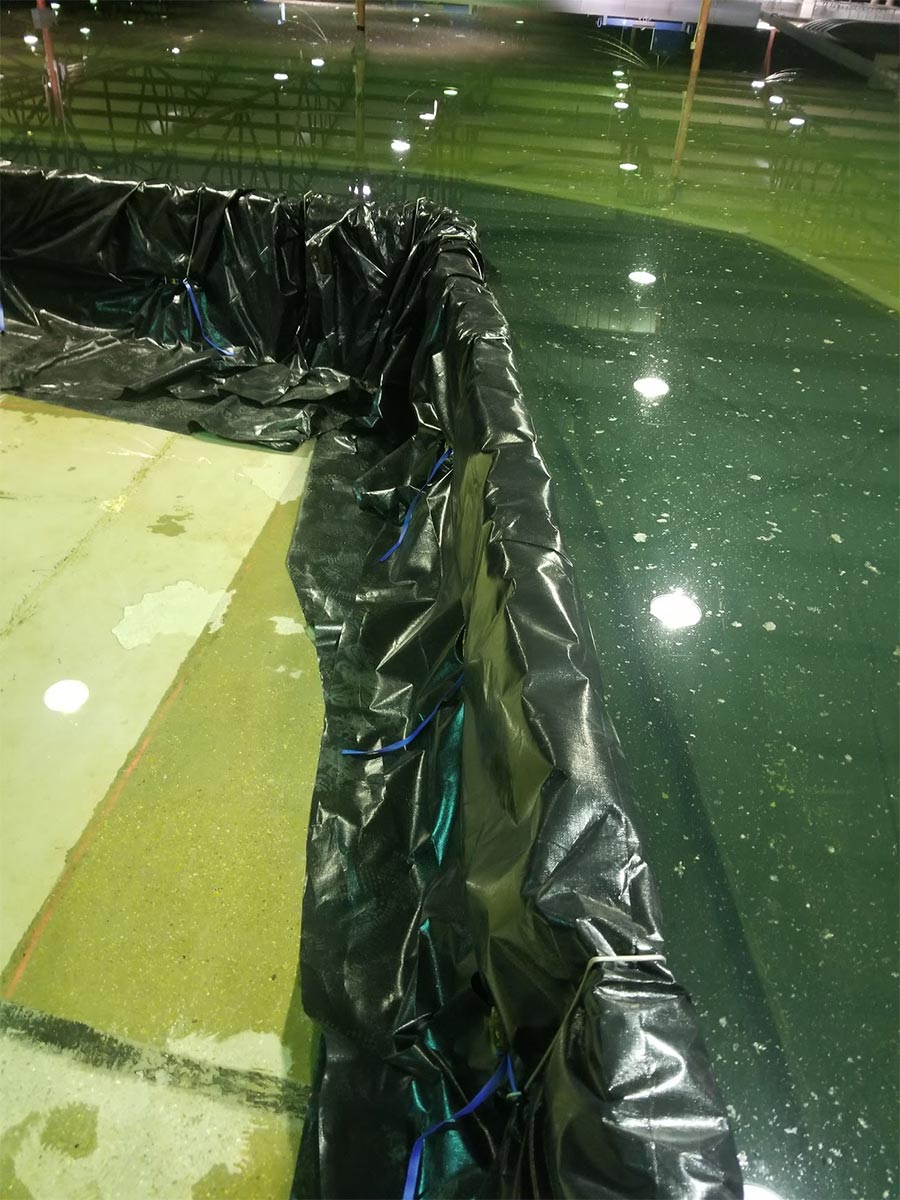

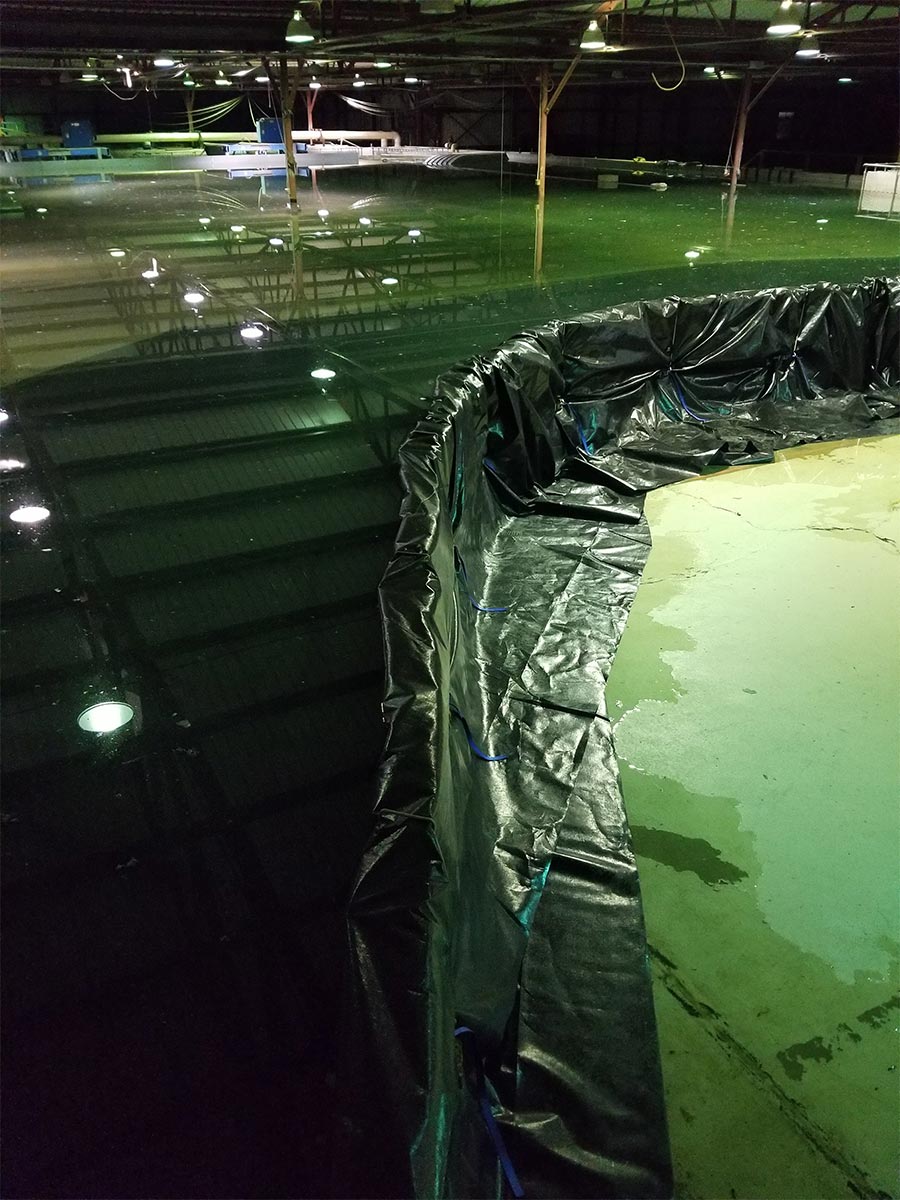

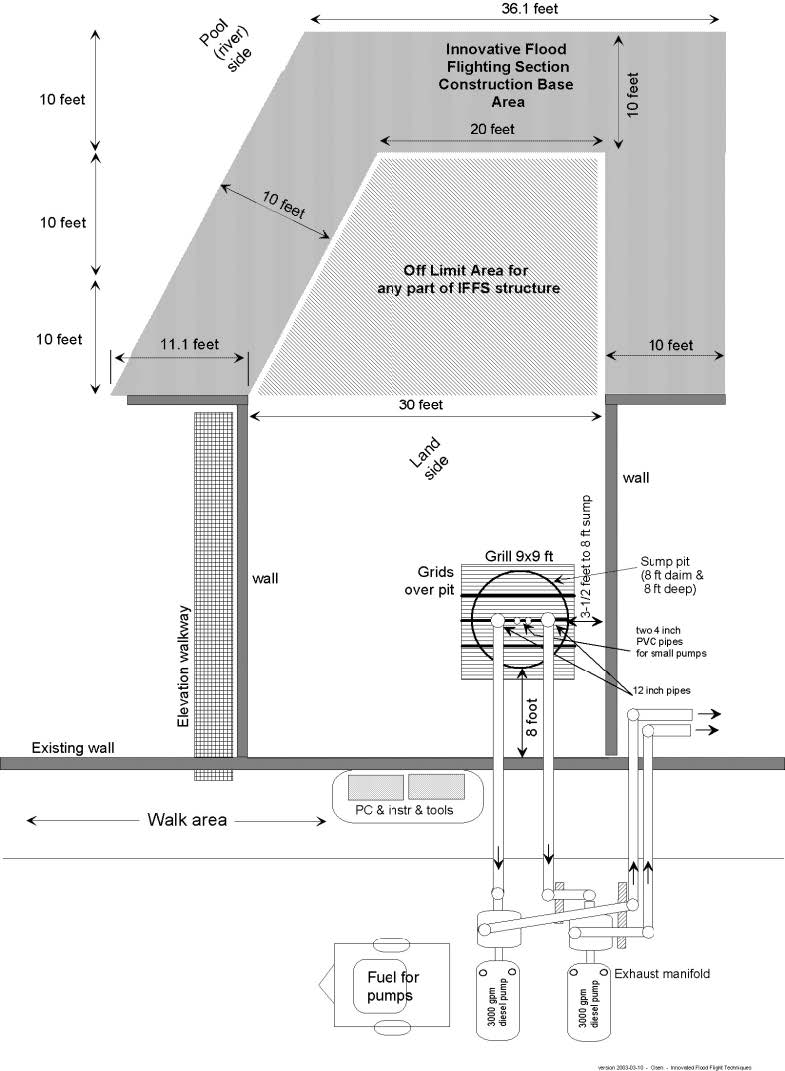

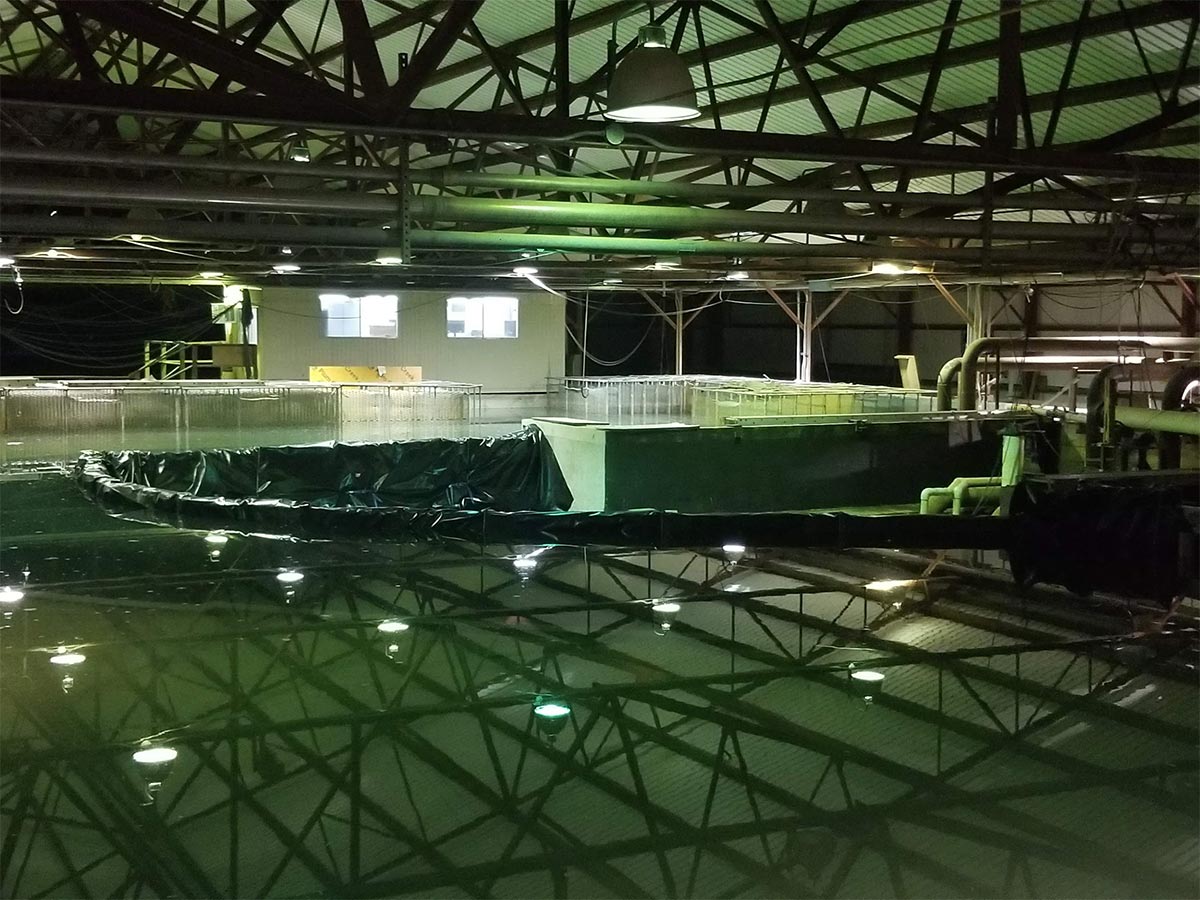

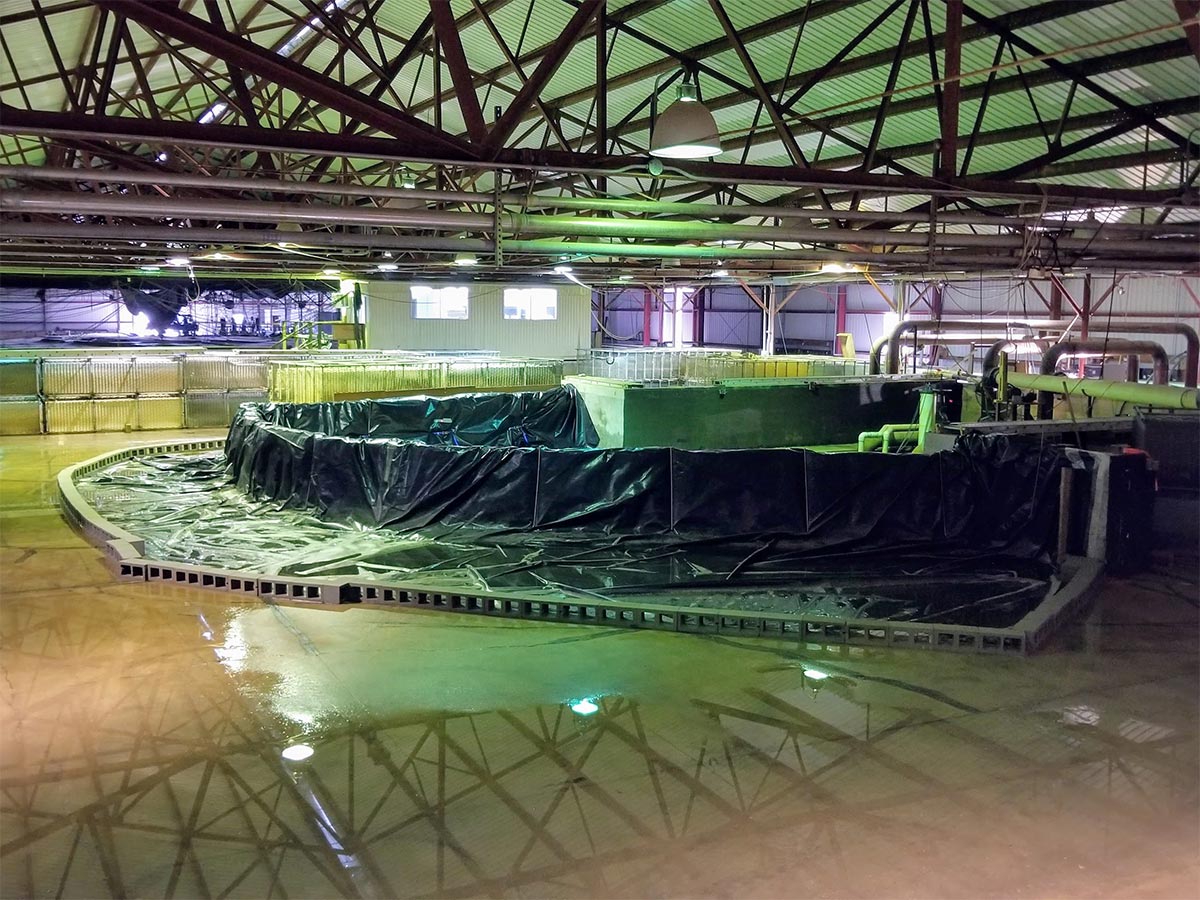

The U.S. Army Engineer Research and Development Center test facility was configured specifically for innovative flood-fighting experiments by allowing levees to be constructed against two wall abutments with a 30-ft. opening between the 4 foot high walls. A geometric testing zone footprint was laid out on the concrete floor and all levees are required to be constructed within this given footprint. One side of the footprint abuts the concrete wall at a 90-deg angle, and the other side abuts the concrete wall at a 63-deg angle. The purpose for having two different angles is to simulate real-world geometric variability and demonstrate constructibility and geometric flexibility of each vendor’s product. Additionally, the unsymmetrical geometry allows wave loading variability during hydrodynamic testing, and causes an apparent current along the 63-deg wall.

Inside the test area (leeward side of the levee), an 8-ft. diameter by 8-ft.-deep circular pit was installed to catch any seepage or overflow water from the structure. Two 4-in.-diameter pumps were installed in the seepage pit to pump the accumulated water back into the wave basin. Two 12-in.-diameter pumps (12 in. intake and 10 in. output) were also installed to pump excess water out of the seepage pit when the capacity of the 4-in. pumps was exceeded.

The test area was instrumented with a series of lasers to measure any movement of the flood-fighting barrier, a laser to measure changes in water surface elevation within the seepage pit, and an additional laser to measure water surface elevation within the basin.

Evaluation of 4-Foot Muscle Wall Flood Fighting Barrier, US Army Engineer Research and Development Center Coastal and Hydraulics Laboratory, Efrain Ramos-Santiago, Curtis Blades and James D. Gutshall, May 2020.

Series of Rigorous Testing

1. Time of Assembly

Total assembly time was monitored by FM Approval reps from start to finish, noting all tools and equipment required for full installation.

2. Hydrostatic Tests

One foot depth - seepage & movement

Two foot depth - seepage & movement

100% depth - seepage & movement

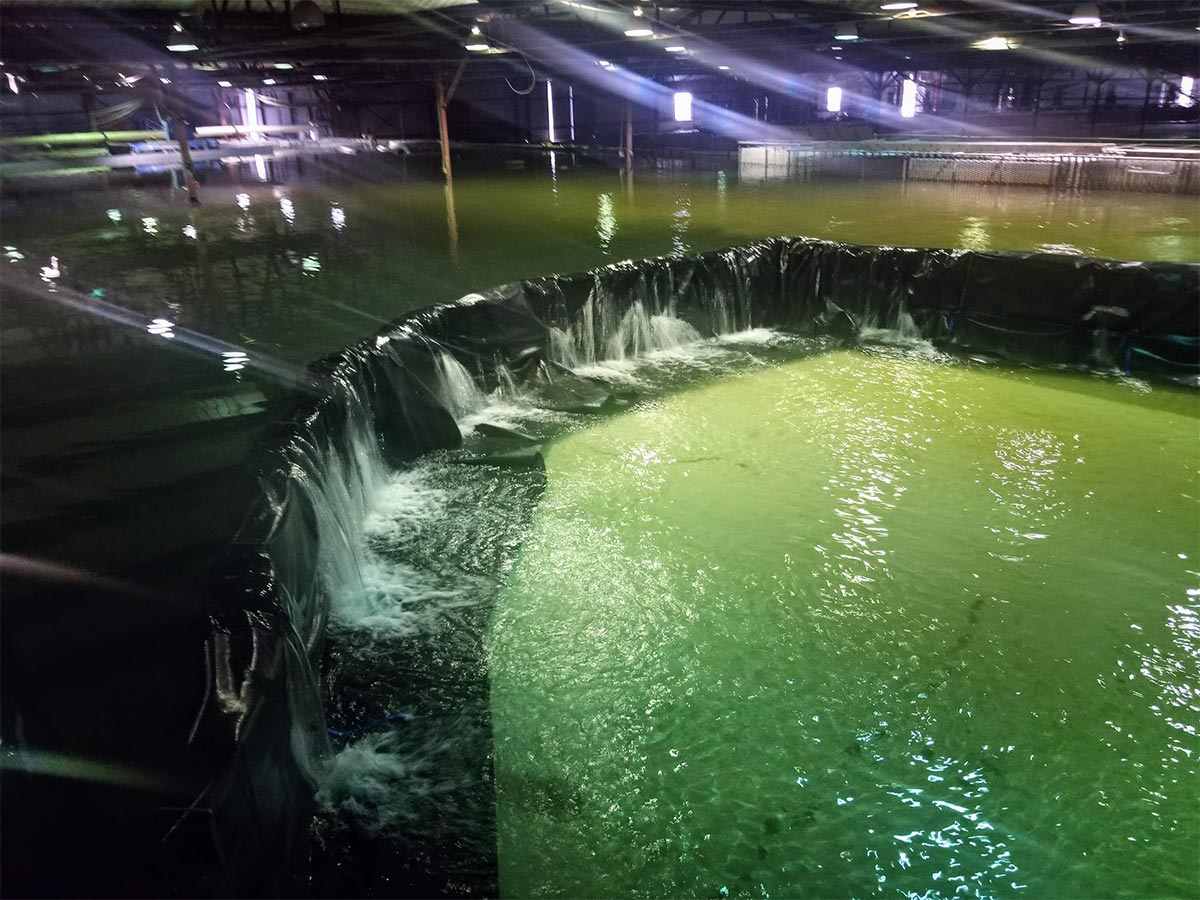

3. Hydrodynamic Tests

Low water, small waves

Low water, medium waves

Low water, large waves

High water, small waves

High water, medium waves

High water, large waves

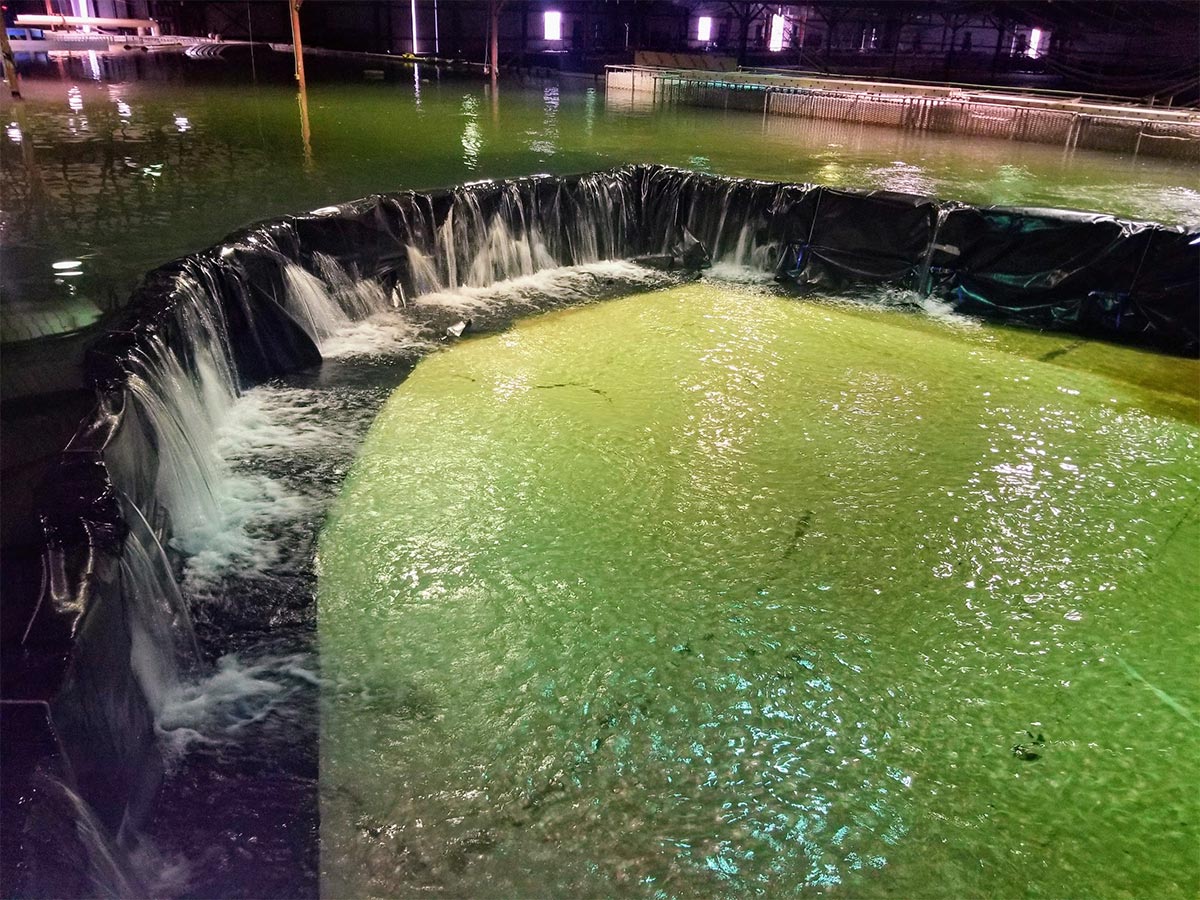

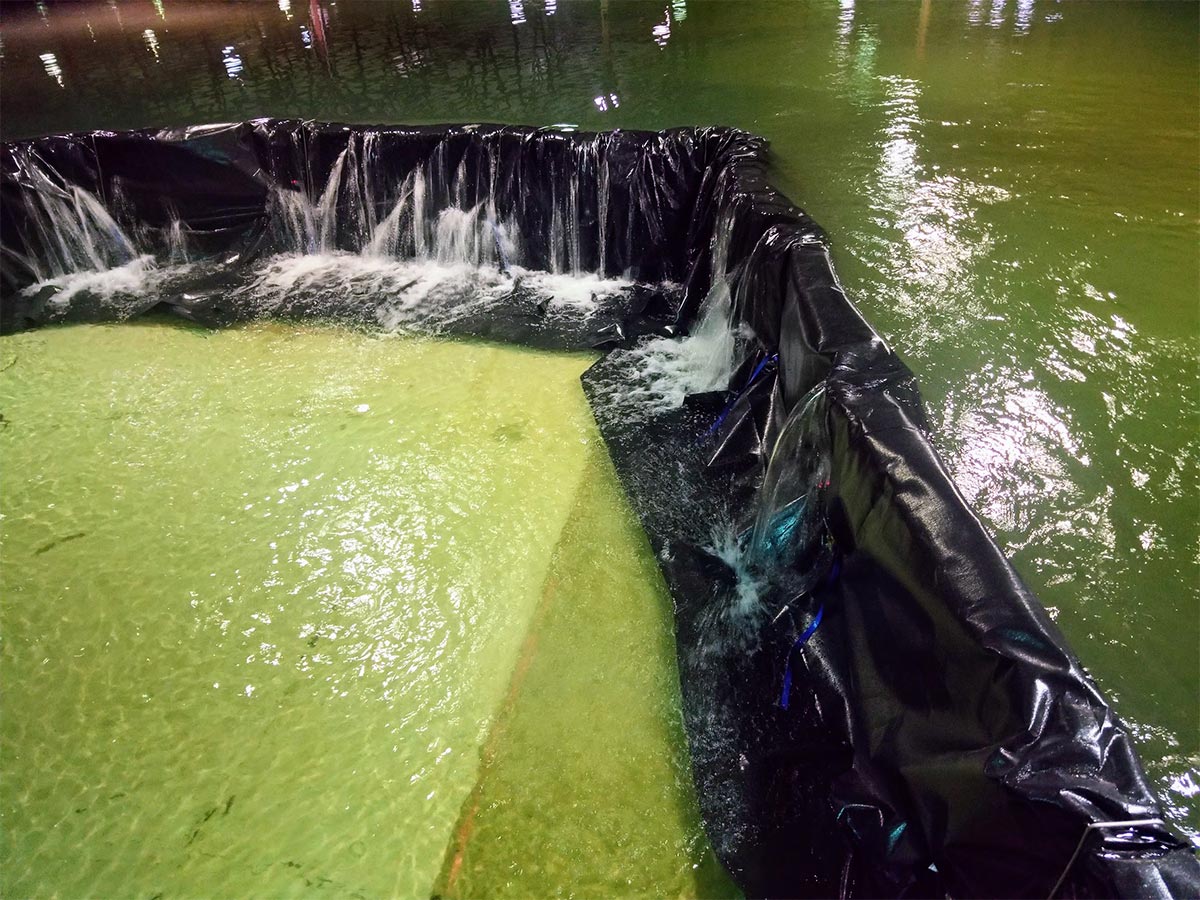

Overtopping

4. Debris Impact Tests

12"x10' log (610lbs dry) - 5mph

16.5"x10' log (790lbs dry) - 5mph

5. Riverine Current Test

7 ft/sec channel flow velocity for one hour

6. Post Hydrostatic Test

100% depth - seepage & movement

Report Conclusions

"The 4-Foot Muscle Wall barrier system proved to be an expedient and effective flood barrier. Compared to the baseline sandbag barrier of comparable length and height, the 4-Foot Muscle Wall barrier system was faster to construct and remove with fewer people and less equipment, had less seepage, and was more resilient to waves and overtopping. Under the conditions required by the Standard Testing Protocol, the 4-Foot Muscle Wall outperformed or met the performance of the baseline sandbag test in every way."

Evaluation of 4-Foot Muscle Wall Flood Fighting Barrier, US Army Engineer Research and Development Center Coastal and Hydraulics Laboratory, Efrain Ramos-Santiago, Curtis Blades and James D. Gutshall, May 2020.
Get Report
